HQ-LD1200S Belt Color Sorter
Hawking Industry color sorters and optical sorting machines remove discoloured, defective and foreign material from coffee beans, rice, pulses and grains using CCD and NIR imaging. Multiple models for 1-10 t/h lines.
Product Information
- CategoryColor Sorter
Questions about capacity, specifications or site layout? Our engineers will help you choose the right machine.
- Email[email protected]
- WhatsApp8619036528760
Why Choose Our Color Sorter
Packed with advanced AI and precision hardware, our color sorters deliver industry-leading accuracy, flexibility and reliability.
Wireless Control
WiFi and Mobilephone control available
Shape Sort
Shape sorting available
Smart Capture
Intelligent AI photo capture sorting
Warranty Maintenance
1-year warranty with free spare parts
AI
AI learns and manages remotely, providing remote assistance.
RGB Spectrum Technology
More than 16 million kinds of flexible color switch, real-time background color adjustment, enhancing sorting effect.
Wisdom Control Screen
Wise brain wisdom control screen — more sensitive to operate, better to touch, renders equipment more stable.
Imported LED Lamp
Most advanced LED optical technique; imported LED light. Durable and stability.
HD Camera
Toshiba CCD sensor — industrial customized 5400 pixels cameras.
Inlet Injector
1 billion high-frequency high-quality imported injectors.
CCD Chip
CCD chip from Japan & processor from USA — world-class imaging and computing hardware.
Product Overview

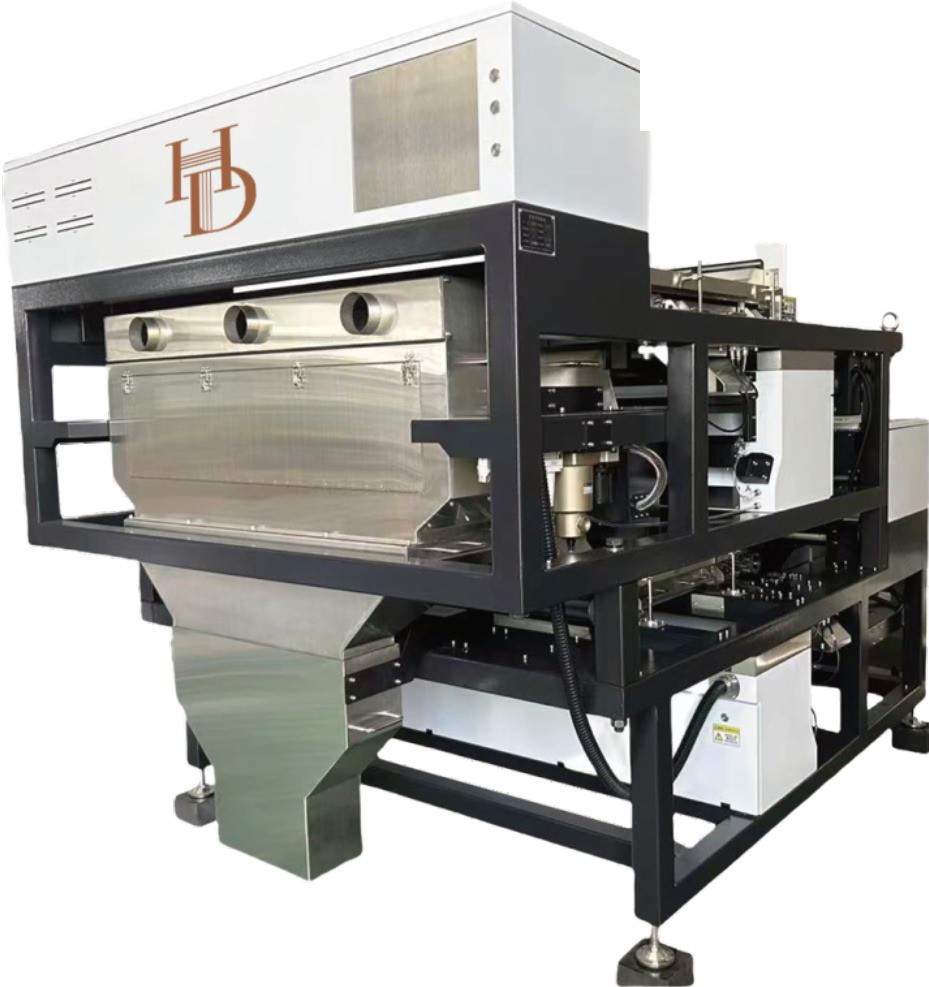

HQ-LD1200S Belt Color Sorter
Model: HQ-LD1200S Type: Belt Type, Double Layer Category: Belt Color Sorter
Product Description
The HQ-LD1200S stacks two sorting layers in one frame, giving a second chance to every kernel before it leaves the machine. That is why it anchors the largest export lines in our range: one pass on the upper layer, a fine-sorting pass on the lower layer, and clean product out of a single outlet. Despite double sorting power it keeps the same 99% accuracy target and a compact 2810 mm footprint.
Specifications
| Parameter | Value |
|---|---|
| Structural form | Belt Type, Double Layer |
| Color sorting accuracy | >=99% |
| Carry-over ratio (bad:good) | >=20:1 |
| Voltage / frequency (V/Hz) | 220V/50Hz |
| Power | 9 kW |
| Air pressure (Mpa) | 0.6-0.8 |
| Air consumption (m3/min) | >=8 |
| Processing capacity (T/H) | 5-15mm: 5-7; 15-30mm: 6-10; 30-50mm: 8-12 |
| Dimensions (L*W*H/mm) | 2810*2000*2088 |
| Weight (KG) | 2300 |
Typical Applications
Export-grade coffee, mixed pulses, peanuts, sunflower kernels, tree nuts and high-value seeds where a second sorting pass pays for itself.
