Product Overview

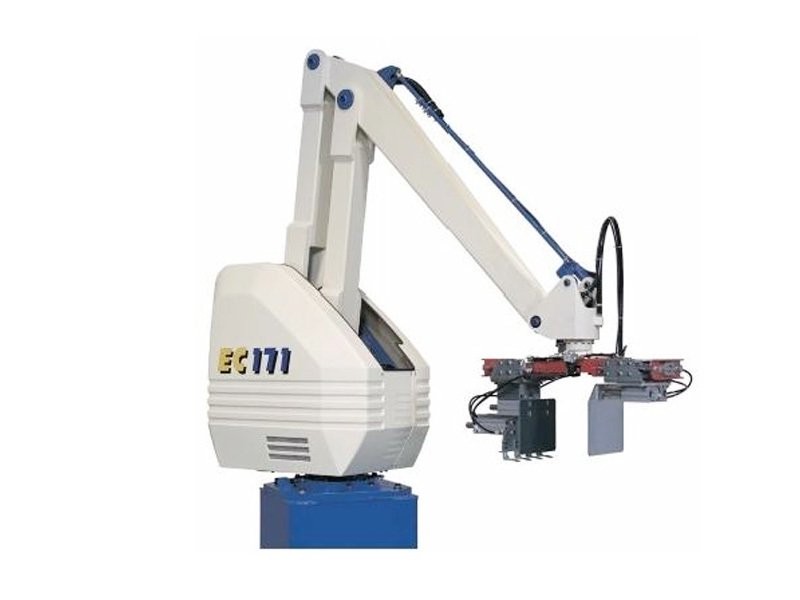

EC-171 Stacking Robot Model: EC-171 Type: Automatic Palletizing System Category: Pulses Cleaning Machines
Product Description
The EC-171 Stacking Robot is a high-performance automatic palletizing system for bags, boxes, and barrels. Replacing manual operations, it delivers consistent stacking at up to 1000 cycles per hour, boosting productivity while reducing labor costs and injuries. The touch screen teaching system simplifies programming—operators enter product dimensions and pallet specs to create stacking patterns. With 160 kg working capacity and PLC control, it integrates seamlessly with upstream and downstream equipment.
Specifications
| Parameter | Value |
|---|---|
| Capacity | Up to 1000 times/hour |
| Working weight | 160 kg |
| Robot weight | 750 kg |
| Control mode | PLC |
| Total power consumption | 4 kW |
| Total air consumption | 100 m³/h |
| Air pressure | 0.5 MPa |
| Operation range | Z-axis 2400mm (vertical), R-axis 1600mm (front/rear), 0-axis 330° (horizontal), α-axis 330° (vertical) |
Key Features
- Touch screen teaching support—enter product dimensions and pallet patterns without programming skills
- I/O point monitoring displays real-time status of all sensors and actuators
- Data input for one-touch changeover between product sizes and pallet configurations
- Comprehensive error management with history recording and suggested corrective actions
- Fault and maintenance help display with step-by-step guidance on screen
- Up to 1000 stacking cycles per hour with high-performance servo drives and 160 kg payload
Applications
Automatic palletizing of bags, boxes, and barrels in grain processing, feed mills, seed packaging, and general manufacturing.
